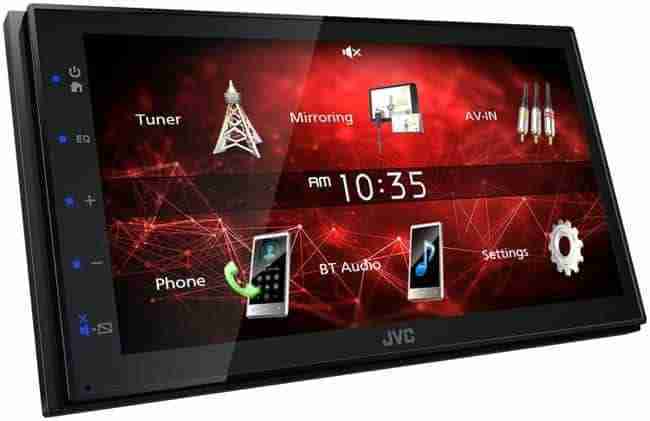

JCV KWM150BT Radio

Step-1 : Simply download the free Mirroring for JVC app. Click on the following link to download:
https://play.google.com/store/apps/details?id=com.jvckenwood.mirroringOBjvc

Step-2 : Connect your smartphone via Bluetooth and USB.

Monitor

• Screen Size: 6.8″ Wide VGA
• Touch Panel: Capacitive with Printing
• Key Illumination Color: Blue
• Multilingual Display: Yes[2]

Media Playback

• MP3 Compatible with Tag: USB
• WMA Compatible with Tag: USB
• WAV Compatible with Tag: USB
• AAC Compatible with Tag: USB
• FLAC Compatible with Tag: USB
• H.264 Compatible: USB
• MPEG 1/2 Compatible: USB
• MPEG 4 Compatible: USB
• AVI/MKV Compatible: USB

Bluetooth Control

• Built-in Bluetooth[1]: Yes (Version 4.2, Wired-Mic included)
• Hands Free Call: Yes (HFP1.6 Wideband Speech)
• Audio Streaming & Control (A2DP, AVRCP): Yes
• Voice Dialing (voice recognition compatible mobile phone required): Yes
• Phone Book Access Profile (PBAP): Yes

Android Control

• Mirroring for Android: Yes (via USB)
• Android Music Playback: Yes (via Bluetooth(R))

iPod/iPhone Control

• iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))

USB

• USB Port: x1 (High Speed)
• Position: Rear
• USB Power Supply: Yes (1.0A)

Radio Tuner

• Radio Data System: Yes
• Preset Stations: 30 (6ch x 5band)
• Automatic Presetting (Strong Station Sequential Memory): Yes
• FM Frequency Range : 87.5-108.0MHz / AM Frequency Response: 531-1,611kHz

Audio

• Maximum Power Output (Front & Rear): 45Wx4
• Full Bandwidth Power (Front & Rear): 16W x 4 (Full Bandwidth Power, at less than 1% THD)
• EQ: Yes (13-Band Graphic EQ)
• Preset EQ: Yes (7Preset + 3user)
• Bass Boost: Yes
• High-Pass Filter/Low-Pass Filter: Yes/Yes
• Time Alignment: Yes

Inputs and Outputs

• AV Input: RCA x 1
• Video Out: RCA
• Rear view camera Input: Yes
• Line Output Terminals: 3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)
• Pre-output Level/Impedance: 2V / 10k ohms
• Subwoofer Output with Level/Frequency Control: Yes

General

• Face Type: Fixed
• Shallow Chassis: Yes
• Wireless Remote Control Type: Ready (Not Included RM-RK258 required)
• Steering Remote Control Ready: Requires make/model/year specific interface (note: interface
  is not available from Pan Pacific)
• Learning Direct OEM Remote: Yes
• ISO Connector: Yes
• Dimensions (W x H x D): Installation Size 178 x 100 x 75 (mm)
• Weight: 1.1kg
• Unit weight in individual package: 1.5kg

[1]Available functions depend on mobile phone.
[2]English / Spanish / French
