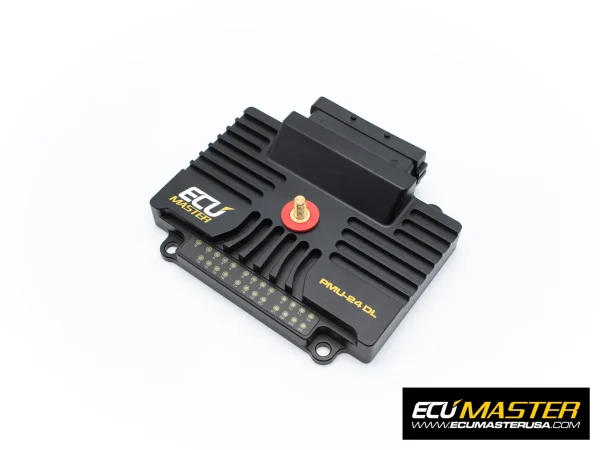

ECUMASTER PMU-24 DL POWER MANAGEMENT UNIT

$3,059.00

Traditionally, fuses and relays served all of those purposes, but they have many disadvantages like complicated wiring looms, sensitivity to vibration/temperature, and difficult diagnostics. All of these problems can be solved by using intelligent power management units (PMUs). Our newly developed PMU unit is at the forefront of technology. It provides 24 high current outputs (and use of multiple units if more outputs are required).

The PMU-24 DL is a new and enhanced Power Management Unit featuring all of the amazing functionality of the PMU-16, now with 24 high-side outputs and internal data logging memory as standard. Through clever engineering, 8 of the analog inputs may be utilized as 7 amp high side outputs. As standard with the PMU-16 series, all output states, voltage, and current information are able to be transmitted via CAN bus to a dash display to inform the driver of potential problems. In addition, all internally logged data can be downloaded from the device for later analysis.

Out of stock

Out of stock

+

Return Policy –

Secure Payment –

The PMU-24 DL is a new and enhanced Power Management Unit featuring all of the amazing functionality of the PMU-16, now with 24 high-side outputs and internal data logging memory as standard. Through clever engineering, 8 of the analog inputs may be utilized as 7 amp high side outputs. As standard with the PMU-16 series, all output states, voltage, and current information are able to be transmitted via CAN bus to a dash display to inform the driver of potential problems. In addition, all internally logged data can be downloaded from the device for later analysis.

KEY FEATURES

170 Amp continuous current capacity.
Operating voltage: 6-22V (immunity to transients according to ISO 7637)
Temperature range: AECQ-100 GRADE 1, -40 to +125°C.
10x 25 Amp high-side power outputs (PWM capable).
6x 15 Amp high-side power outputs.
8x 7 Amp high-side power outputs.
Up to 16 analog inputs.
24x tricolor LED for each power output state.
2x CAN 2.0 A/B.
256 MB data logger memory.
Up to 500 Hz logging frequency.
Real-time clock for data stamping.
3D accelerometer/gyroscope.
Built-in “inertia switch” in case of an accident.
Easy access to CAN-bus data (imports and exports).
Internal data processing using logical functions, numbers,
timers, and tables.
Custom PID controllers.
Fully customizable ”logic” for each output.
Flexible and intuitive client software.
