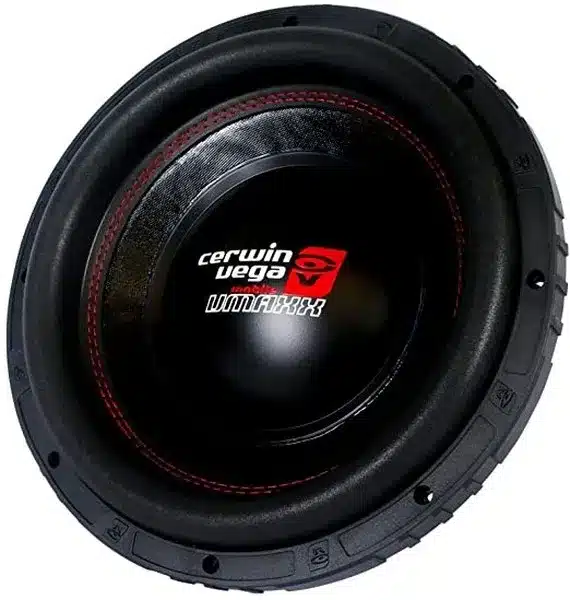

CERWIN VEGA 12″ VMAXX SERIES 4 OHM OR 1 OHM LOAD DUAL 2 OHM SUBWOOFER 1000W RMS

VMAX12D4 – 12” DUAL 4-Ohm High-Performance Subwoofer 2000W MAX / 1000W RMS

Features:
– Heavy Industrial Strength Aluminium Cast Frame
– Treated Semi-Pressed Pulped Cone
– Elevated Motor Structure for Increased Cooling
– Oversized Spider
– Black Coated 3-inch Voice Coil for Higher Thermal Capability
– Oversized Polished Black Chrome Distortion
– Polished Bumped Backplate
– Klippel Optimized Motor / Suspension Symmetry

Specifications:
– SPL (dB): 86.9
– Re(O)[series]: 1 Ohm / 4 Ohm
– Qms: 4.49
– Qes: 0.48
– Qts: 0.44
– Fs(Hz): 32.9
– Vas(L): 44.2
– Cms(mm/N): 0.12
– Mms(g): 272.3
– Sd(m2): 0.053
– BL(T*M): 25
– Xmax(mm): 14
– Pwr(W) NOM/MAX: 1000RMS / 2000W
– Displacement (ft3/L): 0.094 (2.67L) cu.ft / 3/L
– Mounting Depth: 5.98” (152) in. (mm)
– Mounting Diameter (inch/mm) 11.02” (280) in. (mm)
– Screw Hole Diameter: 0.26” (6.5) in. (mm)
– Total Diameter: 12.79” (325) in. (mm)

Amplifier options:
For 1 sub can use CVPRO3K for 4 Ohm Load
For 2 subs can use CVPRO3K for 1 Ohm load
